TS01 электрооптического стручка 30x высокой четкости видимый свет Бла (беспилотный летательный аппарат 3-осевой карданный стабилизатор для зум-объектива
Description:

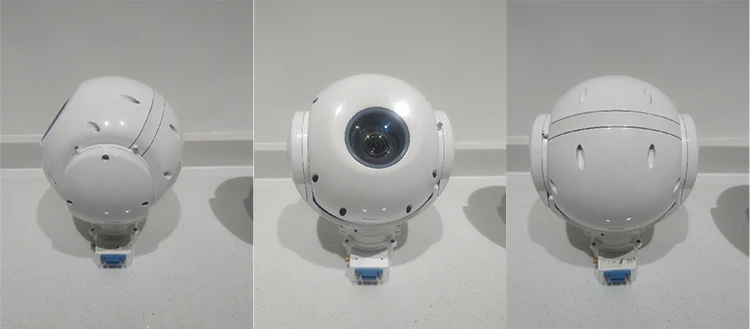

TS01 electro-optical pod has biax gyrostabilized platform installed with electric conduction link to realize 360° continuous rotation, and has 30x high-definition visible light camera . It is mainly applied to airborne earth imaging detection, identification and tracking and used to satisfy the aerial mapping, monitoring, survey and other requirements.
The product with compact structure, light weight and mature and reliable performance may be assembled to various types of unmanned aerial vehicles and other aircraft carriers, and also be assembled to the vessel and vehicle carriers to satisfy the sea and air use demands.
Specification:
|
Visible light zoom camera |
Operating band: |
0.4μm-0.9μm |
|
Detector pixel number |
1920×1080 |
|
|
Focal length |
4.3mm-129mm, optical 30x continuous zoom |
|
|
Continuous zoom horizontal field |
63.7°-2.3° |
|
|
Video output |
HD-SDI, 1080P, 30Hz |
|
|
Servo performance indexes |
Rotation range |
Azimuth axis: n×360° continuous rotation |
|
Elevation axis: -110° to +10° (0° in horizontal direction, positive in the upward direction) |
||
|
Angle measuring precision |
≤2mrad |
|
|
Stabilization precision |
≤100μrad (1σ) (2°/1Hz,1°/2Hz swing) |
|
|
Maximum angular velocity |
≥50°/s |
|
|
Maximum angular acceleration |
≥90°/s2 |
|
|
Tracking performance indexes |
Pixel deviation update rate |
50hz |
|
Tracking velocity |
30 pixels/frame |
|
|
Minimum target contrast |
8% |
|
|
Minimum target imaging size |
4×3 pixels |
|
|
Capability to avoid tracking slip and loss in case of rolling or rapid zooming out or in of target imaging; |
||
|
Capability to automatically recapture the target after short-time obscurity in cloud layer, ground and other sites. |
||
|
Electrical features |
Communication interface |
1 RS422 |
|
Video interface |
1 HD-SDI |
|
|
Power supply features |
Nominal DC voltage |
12V |
|
Normal supply voltage scope |
10V-14V |
|
|
Average power consumption |
≤15W |
|
|
Peak power consumption |
≤30W |
|
|
Structure parameters |
Size |
≤F120mm×171mm; |
|
Weight |
≤800g±1.5% |
|
|
Operating temperature |
Operating temperature |
-20°C-60°C |
