TOMCAT TMC-011 TC-P-2808 1320KV 13T Motor & Skylord 20A Brushless ESC with 5V/2A BEC for RC Airplane

Артикул: QQ99251
Рейтинг:
(0 голосов)
2 386 руб.
Количество:
поделиться

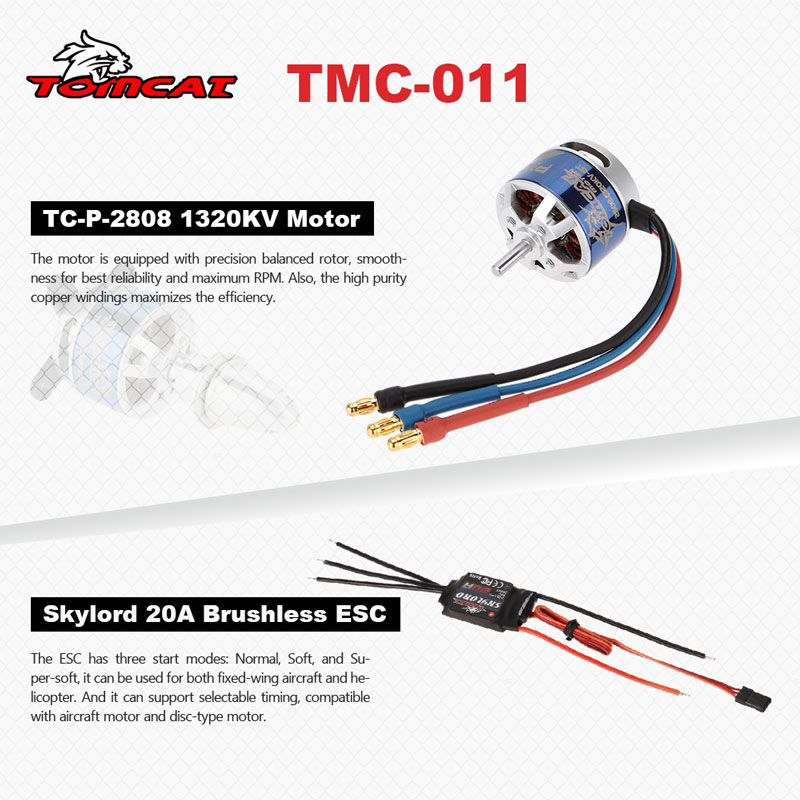

This TMC-011 kit is designed with high quality and durable performance, which is very suitable for RC fans to enjoy flying fun.

Features:
With high quality and durable performance.
Universal fits for RC airplane model.
Microprocessor in the ESC is powered by separate voltage regulator IC, with better anti-jamming capability, greatly reducing the possibility of out of control.

The ESCs have three start modes: Normal, Soft, and Super-soft, it can be used for both fixed-wing aircraft and helicopter.
The ESCs support selectable timing, compatible with aircraft motor and disc-type motor.

The ESC has full protection features such as low voltage protection, over -heat protection, over -load protection, and throttle signal lost protection, it can effectively extend the service life of the ESC.
The motor is with high power and rotation speed.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
High purity copper windings maximizes efficiency.

Specification:
Brand: TOMCAT
Item name: TMC-011 TC-P-2808 1320KV Motor & Skylord 20A Brushless ESC

Motor
KV: 1320KV
Continuous current: 12A
Max burst current(10 seconds): 15A
Banana plug size: 3.5mm
No load current: 1.0A(under 10V)
Resistance: 0.12ohms
Watts: up to 140
Cells: 2–3S Li-Po
Recommended Props: 9x3.8 to 10x4.7
Slots, Poles: 12,14
Diameter: 28mm
Shaft Diameter: 3.175mm
Item weight: 49.1g

ESC
Continous current: 20A
Burst current(10 Seconds): 25A
BEC output: 5V/2A
Power supply: 2-3S LiPo battery, 5-9S NI-MH battery
Item weight: 21.5g
Item size: 40 * 26 * 7mm(without the cable)

Package Information:
Package size: 14 * 9.5 * 9.1cm / 5.5 * 3.7 * 3.6in
Package weight: 171g / 6.0oz
Gift box package

Package List:
1 * TC-P-2808 1320KV Motor
1 * Skylord 20A ESC
1 * Accessories
1 * User Manual
