TOMCAT TMC-009 TC-P-2812 940KV 13T Motor & Skylord 20A Brushless ESC with 5V/2A BEC for RC Airplane

Артикул: QQ99250
(0 голосов)
3 241 руб.

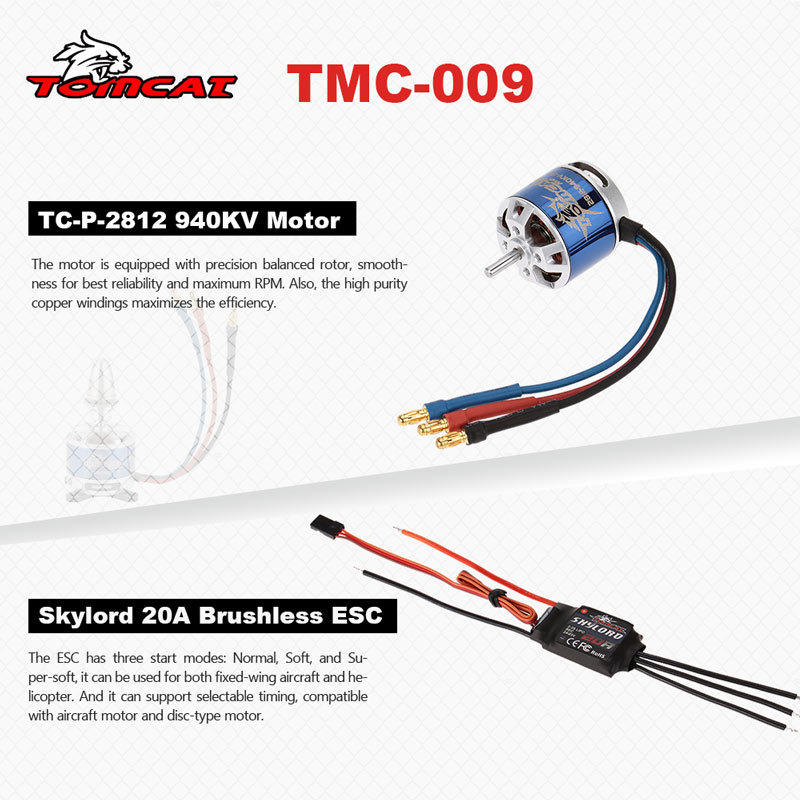

This TMC-009 kit is designed with high quality and durable performance, which is very suitable for RC fans to enjoy flying fun.

With high quality and durable performance.
Universal fits for RC airplane model.
Microprocessor in the ESC is powered by separate voltage regulator IC, with better anti-jamming capability, greatly reducing the possibility of out of control.
The ESCs have three start modes: Normal, Soft, and Super-soft, it can be used for both fixed-wing aircraft and helicopter.
The ESCs support selectable timing, compatible with aircraft motor and disc-type motor.
The ESC has full protection features such as low voltage protection, over -heat protection, over -load protection, and throttle signal lost protection, it can effectively extend the service life of the ESC.
The motor is with high power and rotation speed.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
High purity copper windings maximizes efficiency.

Item name: TMC-009 TC-P-2812 940KV Motor & Skylord 20A Brushless ESC

KV: 940KV
Continuous current: 10A
Max burst current(10 senconds): 13A
Banana plug size: 3.5mm
No load current: 0.8A(under 10V)
Resistance: 0.124ohms
Watts: up to 150
Cells: 2–3S Li-Po
Recommended Props: 9x7 to 11x4.7
Slots, Poles: 12,14
Diameter: 28mm
Shaft Diameter: 3.175mm
Item weight: 63.4g

Continous current: 20A
Burst current(10 Seconds): 25A
BEC output: 5V/2A
Power supply: 2-3S LiPo battery, 5-9S NI-MH battery
Item weight: 21.6g
Item size: 40 * 26 * 7mm(without the cable)

Package Information:
Package size: 14 * 9.5 * 9.1cm / 5.5 * 3.7 * 3.6in
Package weight: 186g / 6.5oz
Gift box package

Package List:
1 * TC-P-2812 940KV Motor
1 * Skylord 20A ESC
1 * Accessories
1 * User Manual
