TAROT T-2D V2 2-Axis Brushless Gimbal Kit for Gopro

The Tarot’s T-2D v2 gimbal is designed specifically for the infamous commercial quality Gopro Hero3. Using 6061T6 aluminum alloy full CNC precision machining, and their incorporation of the brushless motors as part of the overall framework reduces size and weight. The T-2D has been engineered to perfectly balance out with the GoPro3 so the load on the motors is minimized and require almost no tuning. The T-2D v2 comes with a new style two layer vibration isolation mount and BLGC mount and has various new frame mounting options.

The Tarot ZYX22 Brushless gimbal controller is unique from all the other run of the mill BLGC on the market. They removed the FTDI chip from the board to save size and weight, but is just as easy to use with the included USB adapter. The Tarot’s computer user interface for setup and tuning (if required) is the easiest and most intuitive seen yet. The Tarot packs in more options, like support for rate mode or position mode as-well as custom initial pitch angle, and support for standard RC input as well as S.BUS and Direct DSM2/DSMX input via a satellite receiver. The T-2D combo is simply the most refined brushless gimbal for a GoPro 3 on the market.

Features:

• Vibration isolation mounting (new version)
• Integrated motor and frame design
• GoPro 3 direct mounting
• Supply voltage polarity protection and voltage compensation
• Short-circuit protection
• Custom initial pitch angle
• Sensitivity parameter adjustment support and software
• Supports joystick rate mode and position mode
• Dual 32-bit high-speed ARM core processor
• Easy to use software

Specifications:

• Working Voltage: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)
• Working current: 200mA-500mA (power supply voltage and the motor related)
• Working temperature: -15c ~ 65c
• Processor: Dual 32-bit high-speed ARM core processor
• Sensor: Three rotor MEMS gyroscope rotor MEMS accelerometers
• Maximum angular rate: 2000 ° / Sec
• Maximum acceleration: 16g
• Control frequency: 2000Hz
• Motor drive frequency: 20KHz (no noise smoothing drive)
• Control accuracy: 0.1 deg
• Control angle range: -45Deg ~ 45Deg (roll), -135 ° ~ 90 ° (tilt)
• Power Interface: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)

Camera equipment:

• GOPRO Hero3 (not included)

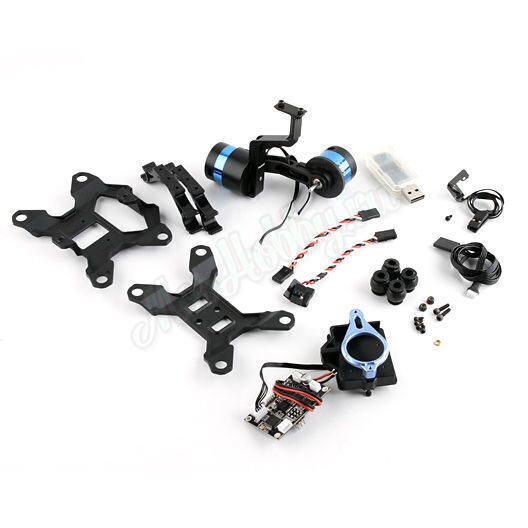

Includes:

• ZYX3 rotor gyro USB cable group × 1
• GOPRO two-axis gyro sensor head × 1
• GOPRO two-axis gyro head master controller × 1
• USB computer interface x 1
• T-2D gimbal with motors and isolated mounting
• ZYX22 brushless gimbal controller
• Related hardware
