This TMC-008 kit is designed with high quality and durable performance, which is very suitable for RC fans to enjoy flying fun.

Features:
With high quality and durable performance.
Universal fits for RC airplane model.
Microprocessor in the ESC is powered by separate voltage regulator IC, with better anti-jamming capability, greatly reducing the possibility of out of control.
The ESCs have three start modes: Normal, Soft, and Super-soft, it can be used for both fixed-wing aircraft and helicopter.
The ESCs support selectable timing, compatible with aircraft motor and disc-type motor.
The ESC has full protection features such as low voltage protection, over -heat protection, over -load protection, and throttle signal lost protection, it can effectively extend the service life of the ESC.
The motor is with high power and rotation speed.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
High purity copper windings maximizes efficiency.

Specification:
Brand: TOMCAT

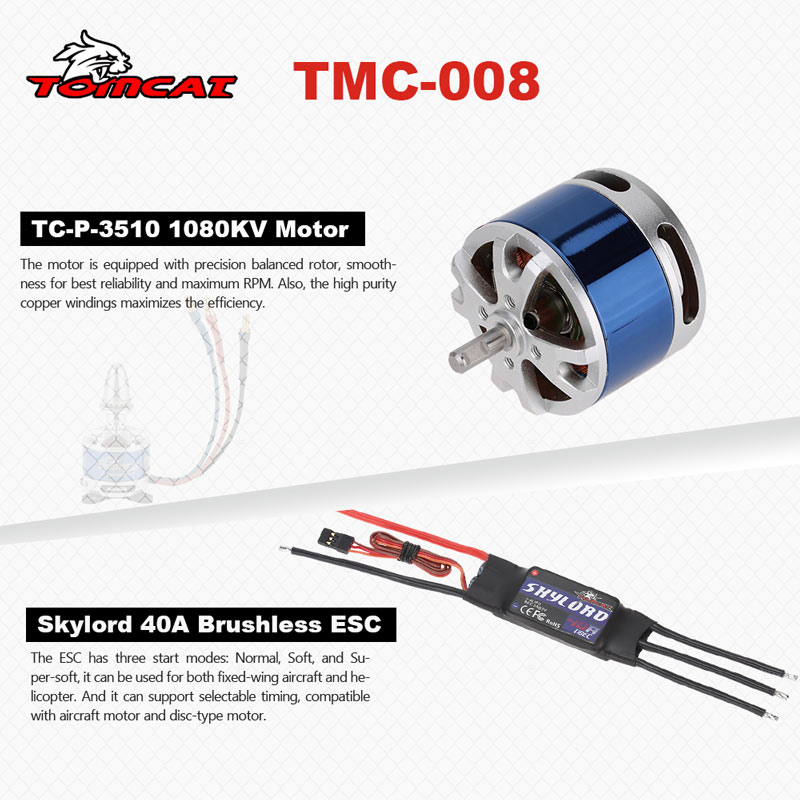

Item name: TMC-008 TC-P-3510 1080KV Motor & Skylord 40A Brushless ESC

Motor
KV: 1080KV
Continuous current: 25A
Max burst current(10 senconds): 30A
Banana plug size: 3.5mm
No load current: 1.1A(under 10V)
Resistance: 0.06ohms
Watts: up to 380
Cells: 3–4S Li-Po
Recommended Props: 10x7 to 12x6
Slots, Poles: 12,14
Diameter: 35mm
Shaft Diameter: 4.0mm
Item weight: 88.5g

ESC
Continous current: 40A
Burst current(10 Seconds): 55A
UBEC output: 5V/3A(switch mode)
Power supply: 2-4S LiPo battery, 5-12S NI-MH battery
Item weight: 43g
Item size: 65 * 26 * 8mm(without the cable)

Package Information:
Package size: 14 * 9.5 * 9.1cm / 5.5 * 3.7 * 3.6in
Package weight: 241g / 8.5oz
Gift box package

Package List:
1 * TC-P-3510 1080KV Motor
1 * Skylord 40A ESC
1 * Accessories
1 * User Manual
